Parameters:
Product Name: DR03W-RGB IC.
IC qty: 720 pixels IC.
Output Signal: 5V SPl Signal.
Input Voltage: DC5V-24V,
Input Current: Wiring terminal Max 12A,DC Working input socket Max 4A.
Product Size: 107.6mm*38.4mm*22mm.
Working Temperature: -25℃~55℃.

Package: Only 1 pcs DR03W-RGB IC pixels controller, do not include led strip and power supply, thanks.

Attention:
1, Power Supply V+, Signal, DAT, Power Supply V- are all designed with 2 channel output, the 2 channel's signal are exactly same, which allows to connect multiple strips at the same time.
2, The LED strip wiring should be correct, otherwise it may damage the strip and controller.

Product Feature:
1, WiFi Wireless Control, Bluetooth Wireless Control and 2.4G RF Wireless Remote Control.
2, WiFi and Bluetooth wireless technology can greatly improve the distribution network experience.lf router is disconnected, you can open bluetooth to control the device at the short distance.
3, App with multiple control options such as dimming ,remote control, group control, scenecustomization ,timing ,music rhythm ,tap to run, automation and do not disturb, etc.
4, Voice control by Amazon Alexa, Google Assistant, Yandex Alice Tmall Genie and BaiduXiao du Xiao mi Xiao ai.
5, Support normal single-wire RZ RGB LED driver IC, support color calibration and numbersof lC setting on the APP, to increase the compatibility of many kinds of LED strip.

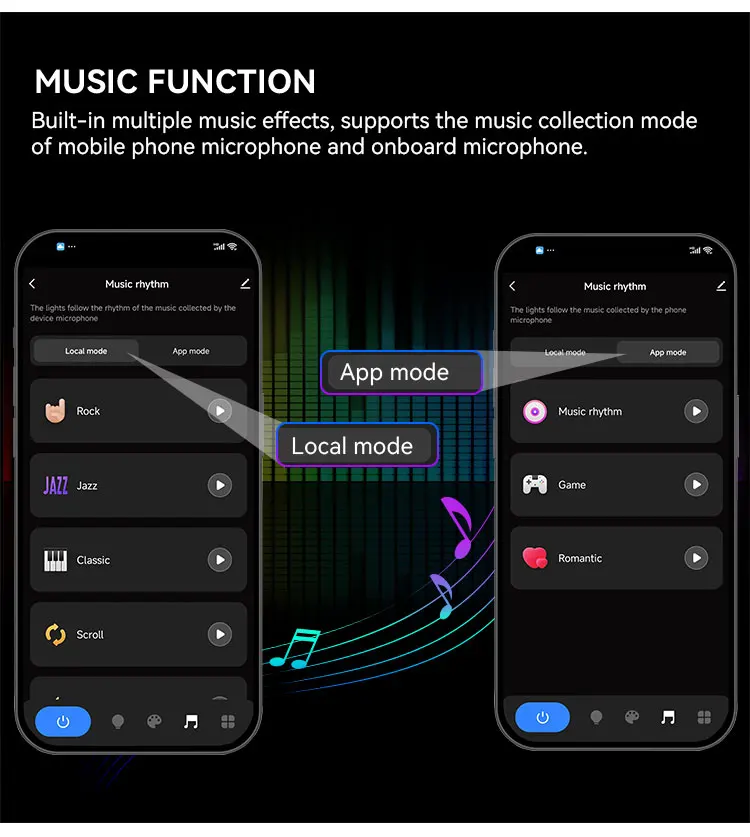

6, Built-in multiple music effects, Supports the music collection mode of mobile phonemicrophone and onboard microphone.
7, Rich Dynamic modes, support dynamic modes customization.
8, Variety of ON/OFF animation effects.
9, Support color adjustment segmentation ,Full color spray painting , segment painting, erasersegment painting.
10, 2.4G RF wireless signal auto-transmission technology,the remote control distance has nolimitless.
11, Support reverse polarity protection.
12, V0 anti-fire PC case.
