Notice: Customers should take care of the clearance and customs duties.
2pin Single Color Controller: use for 2pin wires Single Color led strip.
4pin CW WW Controller: use for 4pin wires led strip, and CW&WW in one SMD LED.
4pin RGB Controller: use for 4pin wires led strip, Only RGB SMD LED.
5pin RGBW Controller: use for 5pin wires led strip, RGB SMD LED + CW SMD LED or WW SMD LED.
5pin RGBW 4 in 1 Controller: use for 5pin wires led strip, RGB&CW or RGB&WW in one SMD LED, 4 Color in 1 SMD.
6pin RGB CCT 5 in 1 Controller: use for 6pin wires led strip, RGB&CW&WW in one SMD LED, 5 Color in 1 SMD.
Product Description:
Mini 4 keys led controller has 5 types, which form a series.
The products of this series can be used to control five types of light bars: Dimmer, color temperature, RGB, RGBW, RGB+CCT.
It can realize fade, jump, fade in and fade out, flash, blasting flash etc. dynamic lighting effects according to customers' actual needs. And a variety of static colors can be chosen from.
The main features of the controller are: 1. Compact body and convenient wiring; 2. Simple and clear operation, comfortable button feel; 3. Diversified dynamic mode; 4. Soft dimming effect.
Technical Parameters:

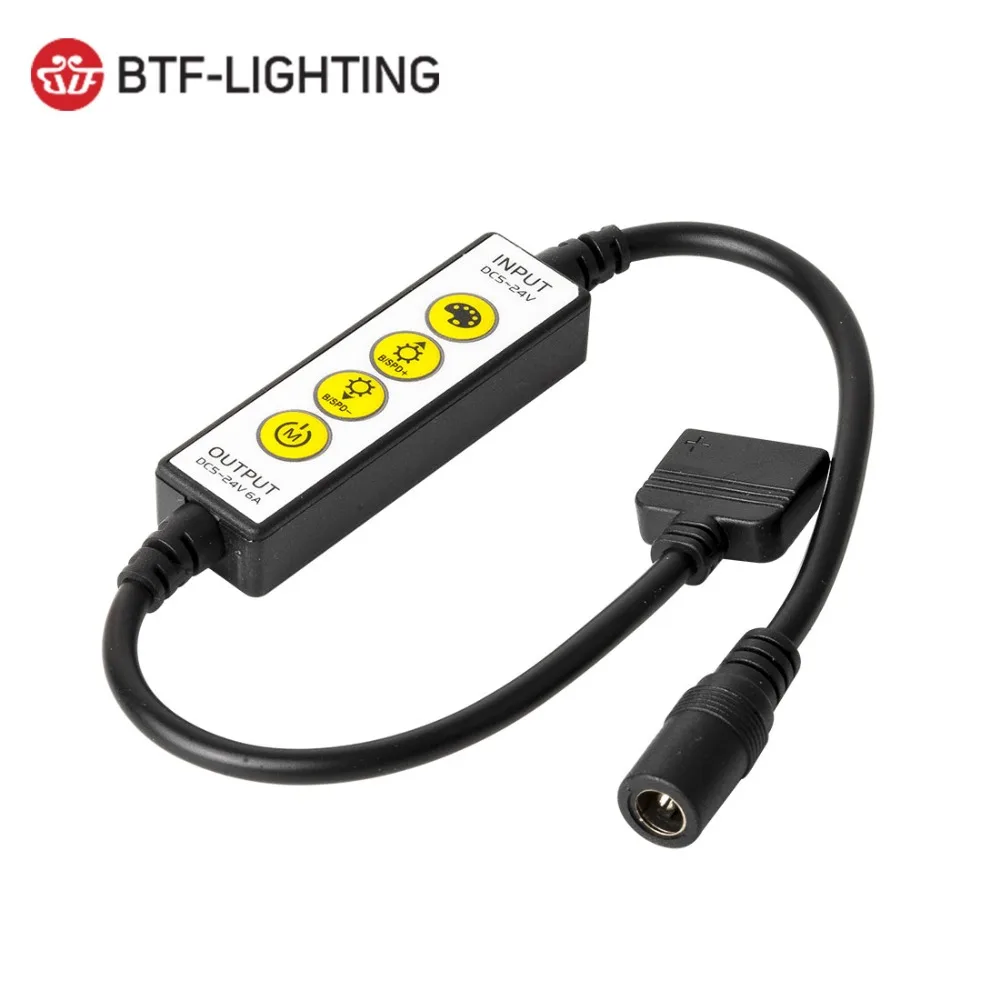

Product Name: Mini 4 Keys Controller
Working Temperature：-20-60℃
Input Voltage：DC5-24V
Connection Mode：Common anode
Controller Size：L55.7×W16.6×H10.7mm
Static Power Consumption：<0.5W
Output Current：Single Color - 1CH*6A, CW&WW - 2CH*3A, RGB - 3CH*2A, RGBW - Max 6A, RGB+CCT - RGB 3*2A+CCT 2*2A Toghther 6A.
Connection Description：
Note: If the controller's output wire sequence which you get are different from above, please according to the actual controller’s wire sequence to corresponding led lights, just make sure the arrows of controller and light are inserted accordingly.
Product Button Function Chart：
