Features:
Up to 840 LEDs each meter, Double layer FPCB, balancing the voltage dropping, heat dissipation and flexibility.
Compatible with most of the 6pin RGBCCT controllers in the markets.
Applications, Residential lighting, decorative lighting.
This LED lights need work with 6pin RGBCCT controller.
Specification:
Input Voltage: DC24V.
Wattage: 16W/M.
FPCB width: 12mm.
FPCB height: 1.6mm.
LED quantity: 840LEDs/M.
Cutting length: every 41.5mm.
Colors: RGB+WW+CW, Any Colors Changeable.
Color Rendering Index: Ra＞90.
Operation temperature: -20℃-+45℃.
Storage temperature: -20℃-+60℃.
View angle: 180°.
Package:

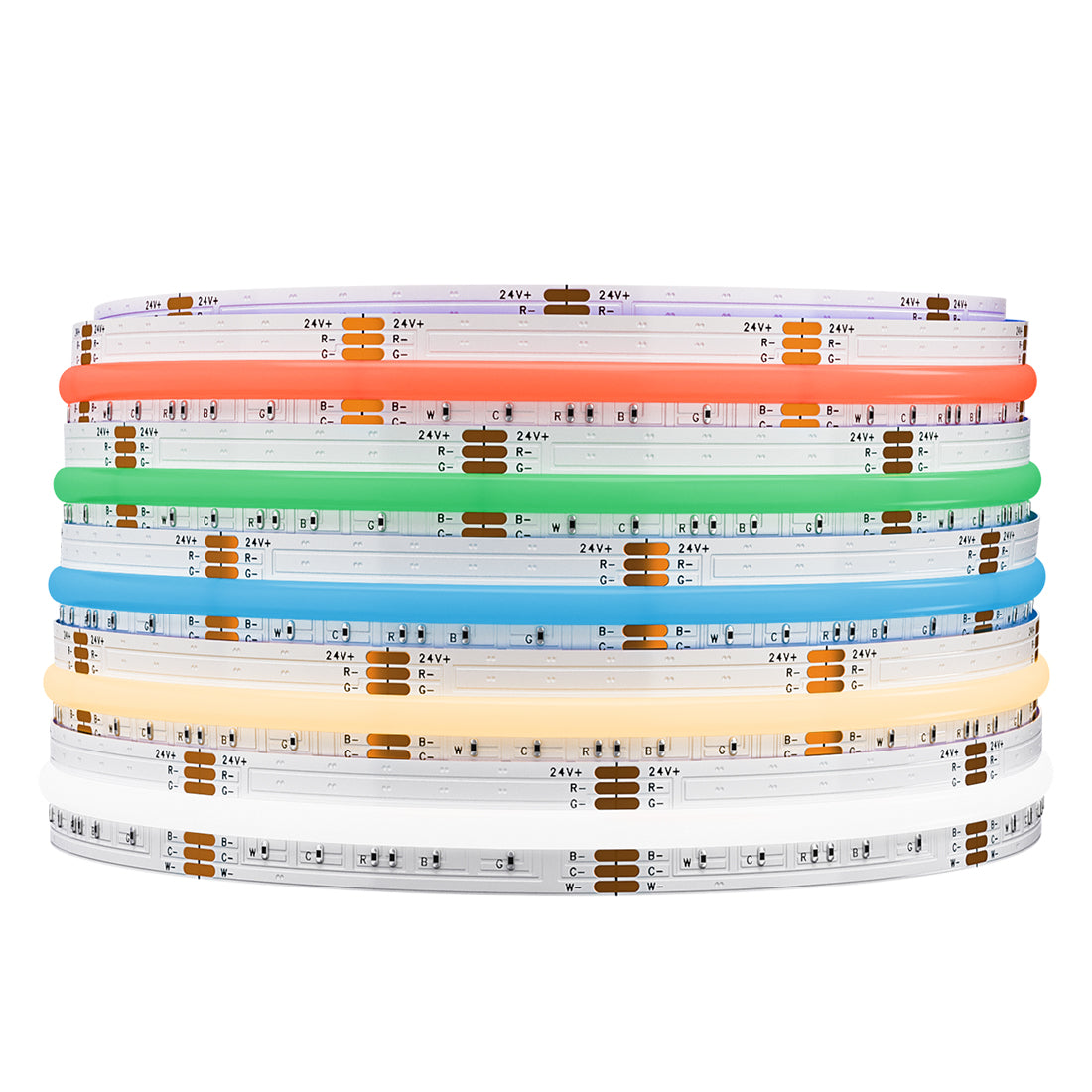

1 * FCOB RGBCCT LED strip ( power supply and controller is not included ).
Installation Ways:
1. For powering on one side, the recommend running length is 5 meters, for over 6 meters please connect in parallel.
2. Make sure of the total watts of COB Strip lights is less than 80% of the power supply's max output.
3. Match the polarities according to the marks in the PCB while connecting.
